MDV-001

• Compact Size - 32 x 24 x 20mm
• High Clamping Force utilising a 45° Dovetail
• Deadlock Pin to stop slide & misload
• Can be used with our MTF tombstone to get 15 vices loaded at once
• Fittings included
• Max Tightening Torque 7.5 Nm
• Weight - 70g

MDV-001

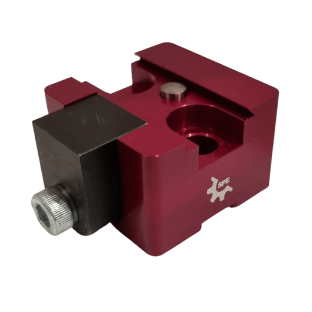

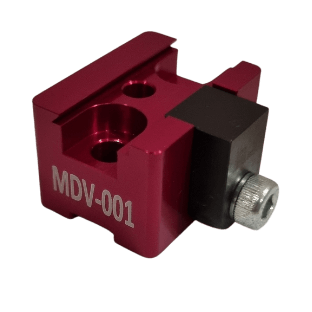

7075 Aluminum 10mm Dovetail Vice

Designed for modular applications.

Micro Tombstone Fixtures MTF-006-X1 & MTF-009-X2 available to hold 15 vices on a 4th or 5th axis.

Workpiece Size From: 33mm x 25mm x 8mm to 60mm cube (1 Kg max)

Dovetail Dimensions: 10mm x 1.9mm

SPE Workholding Dovetail Vices are made to hold parts on three, four and five-axis CNC machines. The vices provide rigid clamping and expose five faces of the billet. Most features can be completed in a single operation. The Dovetail clamps require only 1.9mm of material to hold the workpiece. This results in minimum waste, quick & easy dovetail preparation and zero distortion. Standardize parts with a single dovetail and utilize the same fixture.

Quick & Easy, Strong & Rigid, Efficient & Productive.

Ideal for Plastic, Aluminium & Steel parts *

* It is the responsibility of the Purchaser to assess suitability of application and material

Drawing Number MDV-001-4 for dovetail preparation dimensions is available to all customers.
