MDV-002

• Compact Size - 39 x 39 x 26mm
• High Clamping Force utilising a 45° Dovetail
• Deadlock pin to stop slide & misloading
• Can be used with our MTF tombstone to get 8 vices loaded at once
• Fittings included
• Max Tightening Torque 13 Nm
• Weight - 176g

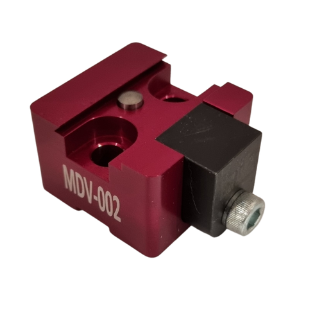

MDV-002

7075 Aluminum 15mm Dovetail Vice

Designed for modular applications.

Micro Tombstone Fixtures MTF-005-X1 & MTF-008-X2 available to hold 8 vices on a 4th or 5th axis.

Workpiece Size From: 40mm x 40mm x 10mm to 80mm cube (2.8 Kg max)

Dovetail Dimensions: 15mm x 2.4mm

SPE Workholding Dovetail Vices are made to hold parts on three, four and five-axis CNC machines. The vices provide rigid clamping and expose five faces of the billet. Most features can be completed in a single operation. The Dovetail clamps require only 2.4mm of material to hold the workpiece. This results in minimum waste, quick & easy dovetail preparation and zero distortion. Standardize parts with a single dovetail and utilize the same fixture.

Quick & Easy, Strong & Rigid, Efficient & Productive.

Drawing Number MDV-002-4 for dovetail preparation dimensions is available to all customers.
