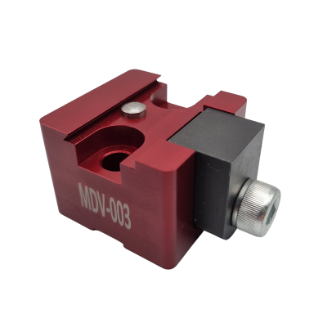

7075 Aluminum 20mm Dovetail Vice

Designed for modular applications. Multiple MDV-003 vices can be placed in-line on a Fixture Rail to hold long parts.

FR001-MDV-003X2 (2 vices),

FR002-MDV-003X3 (3 vices),

FR003-MDV-003X4 (4 vices),

Micro Tombstone Fixtures MTF-004-X1 & MTF-007-X2 available to hold 6 vices on a 4th or 5th axis.

Workpiece Size From: 50mm x 50mm x 12mm to 100mm cube (5.5 Kg max)

Dovetail Dimensions: 20mm x 2.9mm

SPE Workholding Dovetail Vices are made to hold parts on three, four and five-axis CNC machines. The vices provide rigid clamping and expose five faces of the billet. Most features can be completed in a single operation. The Dovetail clamps require only 2.9mm of material to hold the workpiece. This results in minimum waste, quick & easy dovetail preparation and zero distortion. Standardize parts with a single dovetail and utilize the same fixture.

Quick & Easy, Strong & Rigid, Efficient & Productive.

Ideal for Plastic, Aluminium & Steel parts *

* It is the responsibility of the Purchaser to assess suitability of application and material

Drawing Number MDV-003-4 for dovetail preparation dimensions is available to all customers.
